Introduction to Kiosk Ticket Printers...

Also known as embedded units, kiosk ticket printers are designed especially for use in unattended terminals or 'kiosks'. Key features include an auto cutter and paper exit guide to allow un-skilled operators (i.e. the general public) to quickly and safely remove the ticket/receipt and a large paper roll to minimise the number of maintenance visits. Applications include information terminals, ATM's car park ticketting, self service receipting, photo booths, public weighscales etc.

Kiosk ticket printing is the most demanding application for miniprinters to endure. Presenting a ticket direct to unskilled operators, such as the general public, is prone to abuse (both accidental and deliberate). To protect the printer against this, it is essential that the user cannot gain access to the paper roll and kiosk printers acheive this by requiring seperate access to the rear of the printing mechanism. This is a main distinguishing feature between kiosk and panel mounted printers. Autocutters provide additional resilience by preventing paper from being pulled off the roll which is not only inconvenient but, physically extracting the printout at an angle can cause a paper jam. Further protection can be given if a dispenser or chute is incorporated. This allows a length of paper (generally up to 50mm long) to be printed before it emerges from the slot and becomes vulnerable. For receipts longer than 50mm, or for additional protection, a motorised presenter can be included. This system drives the receipt out of the printer only after printing has been completed and the cut performed. Longer receipts might benefit from a loop type presenter which can safely retain the print internally before finally dispensing it. For potentially confidential or sensitive data, a retraction facility can be specified to withdraw and internally store the receipt if the user forgets to take it from the presenter.

Kiosk Ticket Printer Mechanisms...

REXOD RMP5360

RMP5360 kiosk printer



REXOD RMP8300

RMP8300 printer



Custom KPM180H

KPM180H compact ticket printer
  • 20 to 82.5mm Compact Thermal Ticket Printer
  • Available with 200 or 300dpi high resolution head
  • 35, 45, 53, 64, 68 & 96 characters per line
  • Printing speed up to 200mm/second
  • Paper thickness from 60 to 255gsm
  • Up to 200mm diameter roll capacity
  • Paper tear off system, cutter & ejector options
  • USB, RS-232C Interface, Ethernet option
  • Powered 24V DC
  • KPM180H Product Specifications


Custom KPM216HII

KPM216IIH Document printer
  • 194/216mm, A4/US letter, Thermal Document Printer
  • 88, 123, 131, 160, 182 & 236 characters per line
  • Printing speed up to 170mm/second
  • Autocutter
  • Motorised presenter with retraction
  • Up to 180mm diameter roll capacity
  • USB, RS-232C Interface, Ethernet option
  • Powered 24V DC
  • KPM216H Product Specifications


Kiosk Ticket Printer Modules...

Custom TG02H

TG02H kiosk printer
  • 57mm Direct Thermal Kiosk Printer
  • 24, 32 & 42 characters per line
  • Printing speed up to 80mm/second
  • Illuminated bezel option
  • Up to 90mm diameter roll capacity
  • Reliable paper tear off system
  • USB, RS-232/TTL Interface
  • Powered from 12 to 24V DC
  • TG02H Product Specifications


Custom TG1260H/TG2460H

TG2460H kiosk printer
  • 60mm Direct Thermal Kiosk Printers
  • 32, 42 & 56 characters per line
  • Patented anti jamming system
  • Printing speed up to 140mm/second
  • Chrome Tear off, Illuminated plastic bezel or autocutter
  • Up to 120mm diameter roll capacity
  • USB, RS-232 Interface
  • Powered from 12 or 24V DC
  • TG1260H/TG2460H Product Specifications

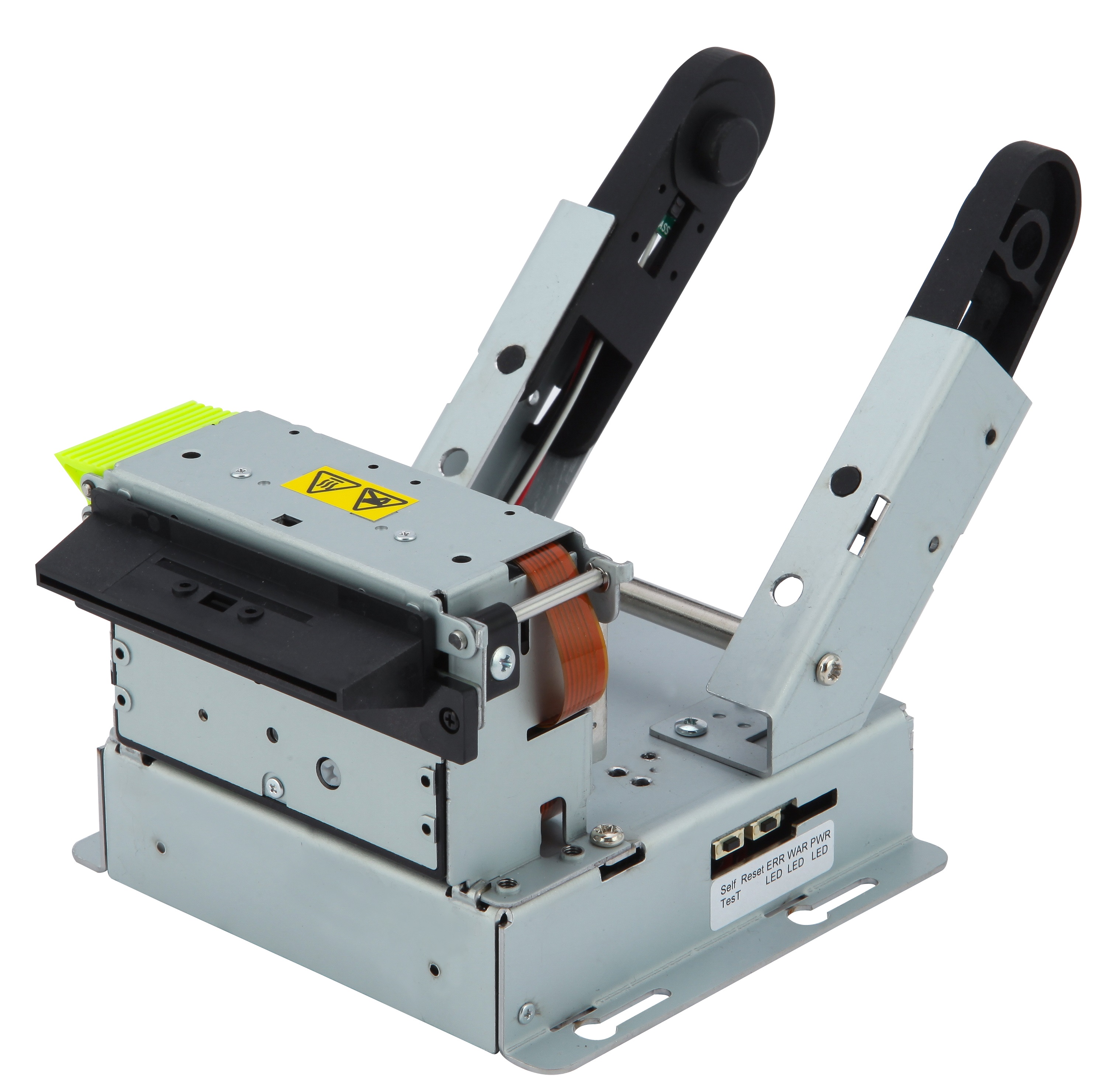

REXOD RX531 Series

RX531 kiosk printer module
  • 60mm Kiosk Printer Module
  • Paper holding arms
  • Horizontal or Vertical mounting versions
  • Paper presenter/bezel options
  • Paper roll diameter - 80 or 120mm
  • High speed - 200mm/sec
  • RS232 & USB serial interface
  • ESC/POS control commands
  • Full/partial cut autocutter
  • Clamshell design
  • 24V DC powered
  • RX531 Kiosk Printer Module Product Specification


Woosim Porti T80/200 / T380

Porti T80 kiosk printer
  • 60 or 80mm Direct Thermal Kiosk Printers
  • 42 or 64 characters per line (max)
  • Slide Mount Chassis for easy paper change
  • 80 or 200mm diameter roll capacity
  • Auto cutter
  • Front paper exit guide
  • Serial RS-232 Interface
  • Powered from 12 to 24V DC
  • Porti T80/200 / T380 Product Specifications


Custom TG2480H

TG2480H kiosk printer
  • 80mm Direct Thermal Kiosk Printer
  • 35, 45 & 64 characters per line
  • Printing speed up to 150mm/second
  • Black bezel or motorised ejector options
  • Up to 90mm diameter roll capacity
  • USB, RS-232C Interface
  • Powered 24V DC
  • TG2480H Product Specifications


Custom VKP80II

VKP80II kiosk printer
  • 60 to 82.5mm Direct Thermal Kiosk Printer
  • 88, 123 & 160 characters per line
  • Printing speed up to 220mm/second
  • Illuminated bezel option
  • Bezel shutter option
  • Motorised presenter with retraction
  • Up to 300mm diameter roll capacity
  • USB, RS-232 interface, Ethernet option
  • Powered from 24V DC
  • VKP80II Product Specifications


Custom VKP80III

VKP80III kiosk printer
  • 50 to 82.5mm Direct Thermal Kiosk Printer
  • 33, 43 & 60 characters per line
  • Printing speed up to 250mm/second
  • Ticket retraction without presenter (patented)
  • Bezel shutter option
  • Up to 180mm diameter roll or fan-fold (450 tickets)
  • USB, RS-232C Interface
  • Powered from 24V DC
  • VKP80III Product Specifications


REXOD RX831 Series

RX831 kiosk printer module
  • 80mm Kiosk Printer Module
  • Paper holding arms
  • Horizontal or Vertical mounting versions
  • Paper presenter/bezel options
  • Paper roll diameter - 80, 120 or 230mm
  • High speed - 200mm/sec
  • RS232 & USB serial interface
  • ESC/POS control commands
  • Full/partial cut autocutter
  • Clamshell design
  • 24V DC powered
  • RX831 Kiosk Printer Module Product Specification
