Argox OS Series Label Printers

The Argox Outstanding Series are thermal transfer and direct thermal printers with advanced standard features and flexible options.

They are engineered to meet moderate volume printing applications of up to 5000 labels per day. With the innovative TrueSpeed technology, these printers have rapid first-label printout and can acheive a constant printing speed of up to 3 inches per second. The small footprint requires minimal counter space and their light weight allows them to be moved to any convenient location.

OS-214Plus

OS-214Plus label printer

Features & Benefits

  • Desktop label printers
  • Direct Thermal / Thermal Transfer - prints on most materials
  • 51 to 76mm/sec print speed - for single or batch labelling, banners or sashes
  • 25.4 ~ 108mm media width - to suit many label or fabric ribbon widths
  • Choice of media type - works with standard labels, polyester, vinyl etc.
  • Ideal for up to 5000 labels /day - suits most batch printing applications
  • RS232C, USB serial or Centronics Parallel interface - compatible with most computers
  • Complete with Application Software & Drivers - ready to install & use

Notes...

  1. These printers are fully serviceable and we carry a wide range of spares in stock for rapid and low cost repairs.

OS Series Specifications

SPECIFICATION OS-214Plus OS-2140
Printing System Direct Thermal, Thermal Transfer, Clamshell Straight through path
Case Colour(s) Light Grey
Cutting System Tear bar, autocutter (option)
Media Direct thermal, or plain media; die cut, continuous roll or fanfold
Media width 25.4 ~ 112mm
Print Length 1092mm 2540mm
Roll Diameter 109mm
Media thickness 0.0635 ~ 0.254mm
TT Ribbon Ribbon Width 1" to 4", Max OD 1.45"(37mm), length max 91m, Core ID 0.5"(13mm) with notch
Wax, Wax/Resin or Resin, Outside wound
Resolution 203 dpi, 8 dots/mm
Print width Max 4 inch (105mm)
Printing speed 51~76mm/sec 51~102mm/sec
Dimensions (WxDxH) 186 x 278 x 165mm 186 x 278 x 165mm
Weight 1.9kg 2.0kg
Controls Power switch, Push button, 2x LED indicators(Power/Ready)

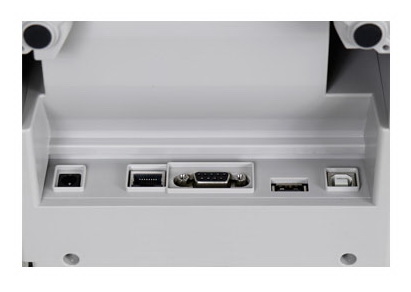

Interfaces RS232C, Parallel & USB RS232C, USB, Ethernet (option)
Memory 8MB DRAM(7MB user available)
4MB Flash ROM(3MB user available)
Flow Control Hardware or Software (XON/XOFF)
Software Emulation PPLA, PPLB PPLA, PPLB & PPLZ
Barcodes Supported Virtually all 1D & 2D codes supported
Sensors Reflective type: Head open, Paper out, TT ribbon status, Label detection
Power Supply Universal Switching Power Supply Input: 100V~240V, 1.5A, 50~60Hz, Output: 24VDC, 2.4A
Operating temp. 4 to 38°C
Humidity 0 to 90%
Warranty (Note *1) Printer: 2 years, Printhead: 6 months, Accessories: 3 months
Expendable/consumable items eg. roller, belt, ribbon, label, battery, fuses, covers, trigger, cables and power supplies are not covered under this warranty
