WSP-DT300 Thermal POS Printers
High speed & Performance with stylish, compact design.
This compact POS printer is much smaller than most similar specified devices. It features; high speed, auto-cutter, support for text & graphics, 2D barcodes and logo upload. International character sets are included as standard and it supports the common ESC/POS control protocols. Unusual for this class of printer, the DT300 is also available with Bluetooth and WiFi interfaces as well as the more standard RS232, USB and LAN wired connections.

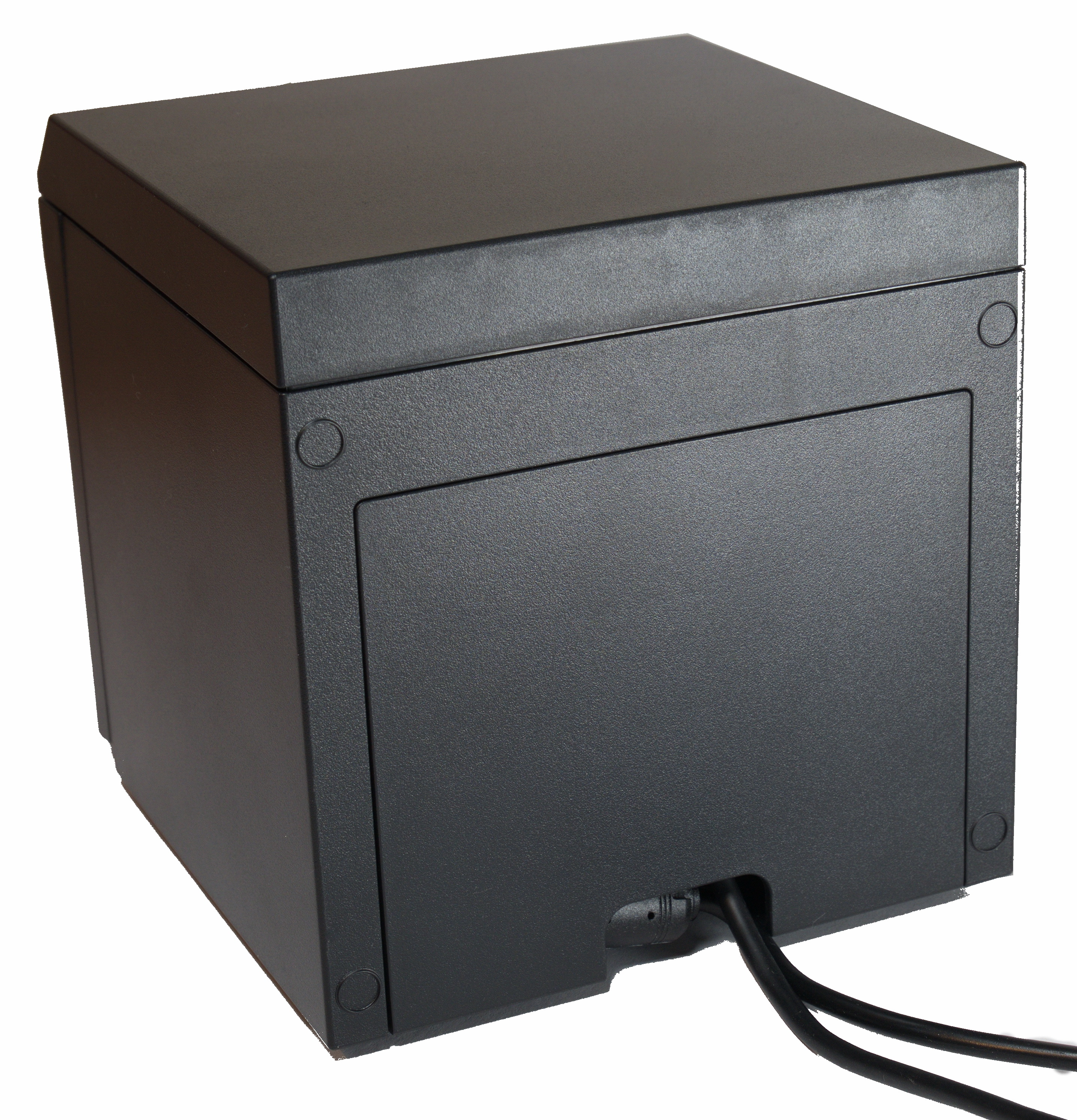

An accessible cable compartment at the back keeps all connections securely out of view and the matt finish does not show finger-marks or scratches like the commonly available highly gloss finished printers.
It is the ideal solution for POS receipting, kitchen printer, electronic weighing, measuring equipment, gaming and lottery systems, etc.
WSP-DT300
Features & Benefits
- 58, 80 or 82.5mm Thermal POS printer
- Ultra compact 'cube' design - just 127 x 130 x 130mm for stylish boutique or hospitality applications
- High speed printing up to 300mm/sec - for ultra rapid receipting
- Supports manual tear-off or autocutter- to simplify receipt issuing
- RS232, USB, LAN, Bluetooth or Wireless LAN interfaces available - compatible with most POS terminals
- Powered from 24V DC (supplied with AC adapter) - POS industry standard
- Concealed cable connectors - Gives a neat & tidy finish and protects cables
- Cash Drawer supported - Allows remote opening of the cash drawer after printing receipt
- ESC/POS command protocols - POS industry standard software control
- Barcode support - inlcudes many common codes plus QRCODE and PDF417 two dimensional codes
WSP-DT300 Specifications
| SPECIFICATION | WSP-DT300UR | WSP-DT300UL | WSP-DT300URW | WSP-DT300URB |
| Colours | Black | |||
|---|---|---|---|---|

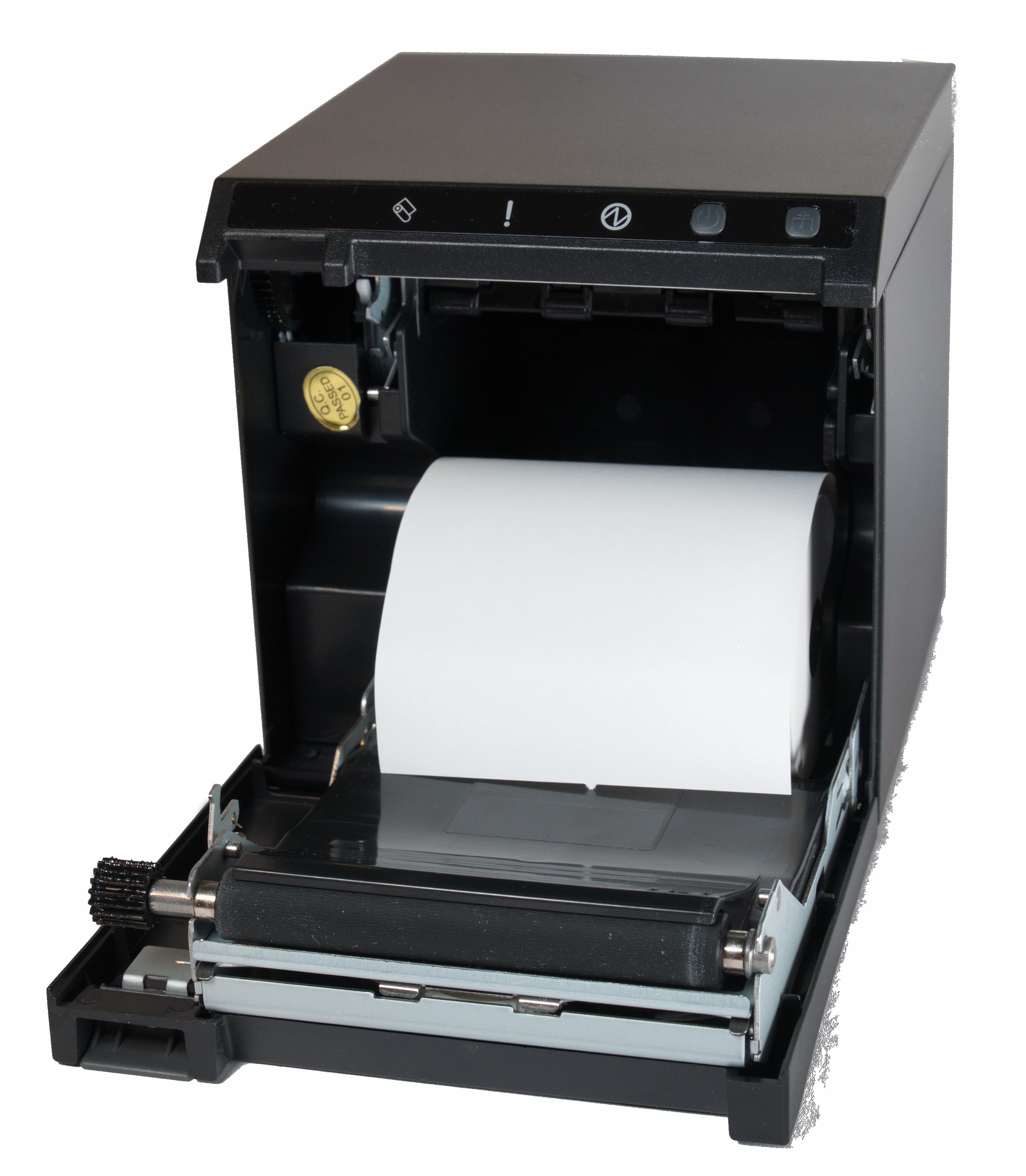

| Printing | Direct Thermal - CLAMSHELL auto load | |||
| Characters per line | 48 / 64 (max) | |||
| Resolution | 203 dpi, 8 dots/mm | |||
| Print width | 2 or 3 inch (max 72mm, 576 dots) | |||
| Printing speed | 300mm/sec | |||
| Auto Cutter | Partial Cut | |||
| Black Mark Detection | Yes | |||
| Dimensions (WxDxH) | 127 x 130 x 130mm | |||
| Net Weight | 1.420kg (excluding paper roll) | |||
| Interface | USB & RS232 | USB & Ethernet | USB, RS232 & WiFi | USB, RS232 & Bluetooth |
| Command protocol | Compatible with ESC/POS | |||
| Character sets | All major international code pages | |||
| Barcodes Supported | UPC-A, UPC-E, EAN13, EAN8, CODE39, CODABAR, ITF, CODE93, CODE128 & 2D: QRCODE, PDF417 | |||
| Cash Drawer Output | 24V DC, 1A | |||
| Paper Capacity | Thermal paper roll 58, 80, 82.5mm wide, 80mm diameter (80m approx length) | |||
| Paper Thickness | 0,06 ~ 0.08mm | |||
| Power Required | 24VDC (2.5A) Supplied with 100/240 VAC, 50/60Hz power adapter |
|||
| Print head life | 100km | |||
| Relative humidity | 10 to 80% (non condensing) | |||
| Operating temperature | 0~45°C | |||
| Drivers | Windows; 9X/2000/2003/XP/7/8/10, Linux | |||
