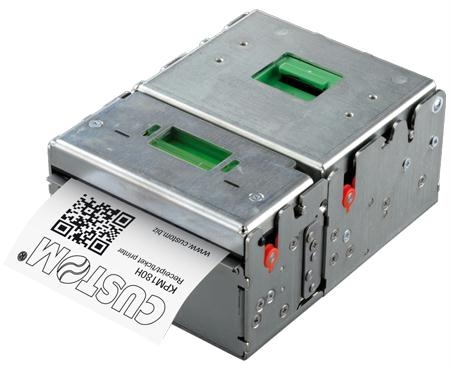

Custom KPM180H Ticket Printer
The Custom KPM180H is the smallest ticket printer available on the market. Ticket printers are characterised by their ability to handle thicker media such as tickets or card. The KPM180H can print on tickets up to 255gsm at 200 or 300dpi resolution. Wi-Fi or Bluetooth modules are available to increase the scope of this unit.
The ejector found in the optional cutter module may be used in two modes making it extremely flexible and easy to integrate in any kiosk.
- Cut and hold - the ticket is held after cutting until the user collects it. This function is recommended for installations where the printer is directly connected to the outside of the kiosk
- Cut and drop - in kiosks equipped with a ticket outlet chute, the ejector can be programmed to eject the ticket and drop it.
KPM180H
Features & Benefits
- 20 to 82.5mm Compact Thermal Ticket Printer
- 35, 45, 53, 64, 68 & 96 characters per line - for most ticket formats
- Available with 200 or 300 dpi head - for standard or very high quality printing
- Printing speed up to 200mm/second - for very high speed ticket issuing
- Paper thickness from 60 to 255gsm - easily handles tickets or card
- Paper tearoff, cutter or ejector options - for a choice of applications
- Up to 200mm diameter roll capacity - to reduce maintenance
- USB, RS-232, Ethernet with WiFi & Bluetooth Interface options - compatible with most equipment
- Powered from 24V DC - for higher printing speeds & better quality
- -20 to +70°C operating range - for use in demanding environments
KPM180H Specifications
| SPECIFICATION | KPM180H-200 | KPM180H-300 |
| Printing System | Direct Thermal auto load | |
|---|---|---|
| Cutting System | Autocutter and presenter options | |
| Media | Thermal Rolls: Paper, Die cut continuous Label rolls or fanfold | |
| Paper width | 20~82.5mm | |
| Roll Diameter | 200mm | |
| Roll Length | 350m (Note *1) | |
| Paper thickness | 0.070 to 0.255mm | |
| Characters per line | 35, 45 & 64 | 53, 68 & 96 |
| Resolution | 203 dpi, 8 dots/mm | 300 dpi, 12 dots/mm |
| Print width | up to 80mm 640 dots | up to 80mm 960 dots |
| Printing speed | 200mm/sec | 150mm/sec |
| Dimensions (WxHxD) (Note *2) |
108 x 67 x 97.5mm 108 x 67 x 149mm (with cutter/presenter) |
|
| Weight (without paper) | 800g 1.5kg (with cutter/presenter) |
|
| Interfaces | Serial: USB & RS-232C, Ethernet WiFi /Bluetooth module options |
|
| Sensors | Head temperature, paper presence, mobile detectors of black mark or translucent gap/hole (setting by software), cover open, external low paper | |
| Power Requirement | 24VDC | |
| Print head life | 100km | |
| Operating temperature | -10~+60°C | |
Utilities
- CuPowerTool - Windows software to enable layout creation (Windows 7 & above). Also managing/printing API for created layouts (Windows, Android, iOS & Linux).
- Ce Driver remove tool - allows removal of any printer drivers from Windows system
- CePrnStatusMonitor - Remote Status Monitor
- PrinterSet - Windows utility to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
- UpgCePrn - Windows Utility to update printer firmware
- DriverManager - Windows utility to manage/remove Custom printer drivers
- CeLinuxUpg - Linux package to update printer firmware
