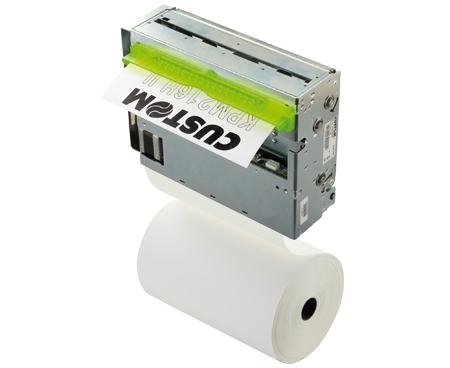

Custom KPM216HII A4 Document Printer
The KPM216HII is an A4 or US Letter width thermal document printer. It can be mounted horizontally or vertically for use in slim kiosks. An autocutter and fully featured presenter means it can be used reliably in unattended terminals. Documents can be looped and retracted if not claimed (to preserve the customer's private information).
Features include a choice of 200 or 300dpi heads and Dot Damage Prevention function to prevent any dots subject to stress (eg by special printouts, like graphics and tables) from wearing out.
The Custom range of kiosk printers can be operated at an industry leading temperature range of -20 to +70°C. This makes them ideal for demanding industrial and field use in extreme environments.
KPM216HII
Features & Benefits
- 194/216mm, A4/US letter, Thermal Document Printer
- 88, 123, 131, 160, 182 & 236 characters per line - for full sized document printing
- Available with 200 or 300 dpi head - for standard or very high quality printing
- Printing speed up to 170mm/second - for very high speed document issuing
- Full featured loop presenter - avoids paper jams clearing the paper outlet through retracting the uncollected printout or through retracting it inside the kiosk for protecting the privacy of the user
- Up to 180mm diameter roll capacity - to reduce maintenance
- USB, RS-232, Ethernet options - compatible with most equipment
- Powered from 24V DC - for higher printing speeds & better quality
- -20 to +70°C operating range - for use in demanding environments
KPM216HII Specifications
| SPECIFICATION | KPM216HII-200 | KPM216HII-300 |
| Printing System | Direct Thermal auto load | |
|---|---|---|
| Cutting System | Autocutter and presenter options | |
| Media | Thermal Rolls: Paper | |
| Paper width | 194~216mm (8.5inch Letter) | |
| Roll Diameter | 180mm | |
| Roll Length | 400m (Note *1) | |
| Paper thickness | 0.063 to 0.085mm | |
| Characters per line | 88, 123 & 160 | 131, 182 & 236 |
| Resolution | 203 dpi, 8 dots/mm | 304 dpi, 12 dots/mm |
| Print width | up to 200mm 1600 dots | up to 200mm 2400 dots |
| Printing speed | 170mm/sec | 120mm/sec |
| Dimensions (WxHxD) (Note *2) |
274.5 x 83 x 232mm (horizontal mount) 274.5 x 107 x 208mm (vertical mount) |
|
| Weight (without paper) | 4.8kg | |
| Interfaces | Serial: USB & RS-232C, Ethernet option | |
| Sensors | paper end, last ticket, black mark, ticket presence (optional near paper end sensor) | |
| Power Requirement | 24VDC | |
| Print head life | 100km | |
| Operating temperature | -12~+70°C | |
Utilities
- CuPowerTool - Windows software to enable layout creation (Windows 7 & above). Also managing/printing API for created layouts (Windows, Android, iOS & Linux).
- Ce Driver remove tool - allows removal of any printer drivers from Windows system
- CePrnStatusMonitor - Remote Status Monitor
- LogoMake - Windows utility to edit graphic logos & load them into flash memory
- FontMake - Windows utility to make or edit fonts & load them into flash memory
- UpgCePrn - Windows Utility to update printer firmware
- DriverManager - Windows utility to manage/remove Custom printer drivers
- CeLinuxUpg - Linux package to update printer firmware
