Custom MYprinter A Mobile Printer

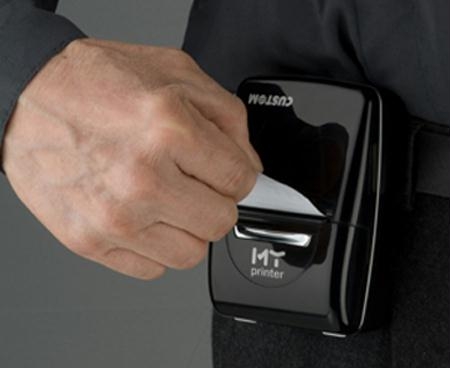

MYprinter A is a high-tech portable mini printer. It is ultra-light and compact. It has a USB Interface or RS232 with optional special cable. It comes with paper end sensor, supports an upgradable customer logo and prints the most used barcodes. Auto-installing drivers for; Windows XP, Vista 7(+64bit support), Linux C.U.P.S. (32/64 bit) & Android are supplied. Thanks to the Bluetooth technology, Myprinter A can print from Android, iOS and WP8 cell phones. It is supplied complete with; practical belt hook, battery charger and USB cable.
MYprinter A
Features & Benefits
- 57mm handheld thermal mobile printer
- Print speed up to 50mm/second - standard for battery portable printers
- 24,32 & 40/42 characters per line - suits most applications
- USB, RS232 & Bluetooth interface - communicates with most equipment
- Easy paper loading by CLAMSHELL design - for easy maintenance
- 33mm diameter roll capacity - to enable compact design
- Rechargeable NiMH battery pack - for mobile applications
- Memory card slot - to provide electronic data logging capability
- ESC/POS emulation - for easy implementation
MYprinter A Specifications
| SPECIFICATION | MYprinter A |
| Printing System | Direct Thermal Clamshell load |
|---|---|
| Case Colour(s) | Black |
| Cutting System | Integral Tear bar |
| Media | Thermal Rolls: Paper, Die cut continuous Label |
| Paper width | 57mm |
| Roll Diameter | 33mm |
| Roll Length | 8m (Note *1) |
| Paper thickness | 0.055 to 0.06mm |
| Characters per line | 24,32 & 40/42 |
| Resolution | 203 dpi, 8 dots/mm |
| Print width | 48mm, 384 dots |
| Printing speed | 50mm/sec |
| Dimensions (WxDxH) | 85 x 110 x 45mm |
| Weight (without paper) | 205g |
| Interfaces | Serial: USB, RS-232C & Bluetooth |
| Sensors | Paper out |
| Battery | NiMH 6V 800mAh 5.5 hours full charge time |
| Charger | 5VDC, USB (AC adapter supplied) |
| Print head life | 100km |
| Operating temperature | 0~+50°C |
Utilities
- CuPowerTool - Windows software to enable layout creation (Windows 7 & above). Also managing/printing API for created layouts (Windows, Android, iOS & Linux).
- LogoMake - Windows utility to edit graphic logos & load them into flash memory
- FontMake - Windows utility to make or edit fonts & load them into flash memory
- UpgCePrn - Windows Utility to update printer firmware
- CeLinuxUpg - Linux package to update printer firmware
- DriverManager - Windows utility to manage/remove Custom printer drivers
