Woosim Porti P Panel Printer Series

This range includes popular, compact, easy load thermal panel mounted printers.

These 2 inch printers (57mm wide paper) are distinguished by the roll diameters of 30, 40 or 60mm.

The main feature of this low cost range is the shallow depth behind the panel making them ideal for slimline panel mounting or very small enclosures.

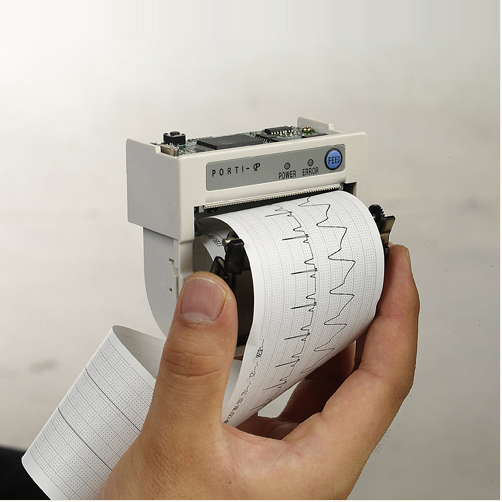

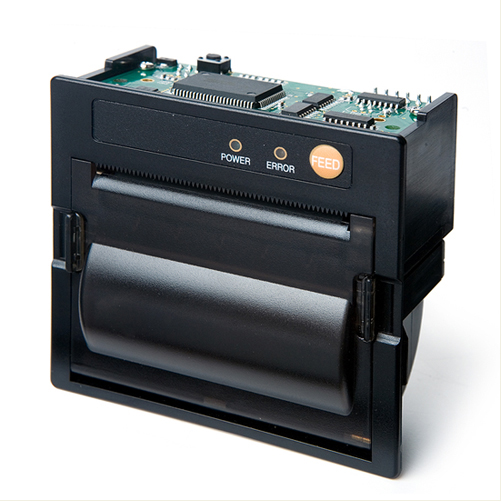

Porti P40

Porti P40 printer

Features & Benefits

  • Ultra slimline - fits easily into compact equipment
  • High speed (50mm/second) - for fast reporting
  • High resolution (203 dpi: 8 dots/mm) - up to 42 characters per line
  • Supports text and graphic printing - for charts or logos
  • CLAMSHELL design - for easy, front access paper loading
  • RS232C (TTL) or Parallel interface - compatible with most equipment
  • 5V or 9V DC powered - to suit fixed or mobile applications

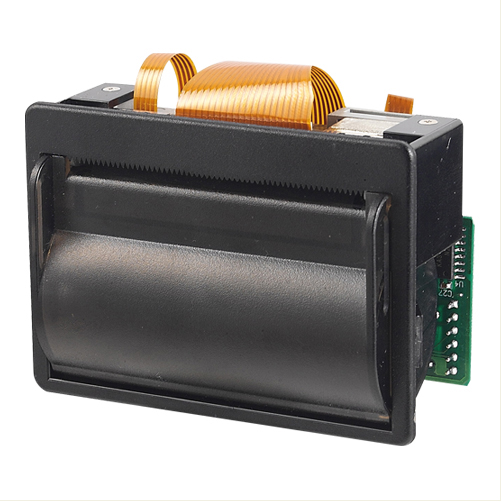

  • P30 - 30mm diameter roll - slimline for compact equipment
  • P40 - 40mm diameter roll - most popular capacity

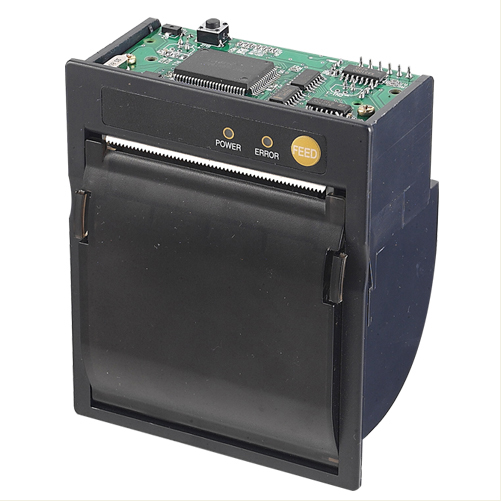

  • P60 - industry leading 60mm diameter roll

Porti P Series Specifications

SPECIFICATION P30 P40 PP40 P60 PP60
Printing System Direct Thermal, Clamshell Easy load
Case Colour(s) Black or White
Cutting System Tear bar
Media Thermal paper roll, Thermal label roll
Paper width 57/58mm
Roll Diameter 30mm 40mm 60mm
Roll Length 11m (Note *1) 17m (Note *2) 43m (Note *2)
Characters per line 16, 24, 32, 42
Character size 9x24, 12x24, 16x24, 24x24 dots
Resolution 203 dpi, 8 dots/mm
Print width 2 inch (48mm), 384 dots
Printing speed 50mm/second
Dimensions (WxHxD) 75 x 55 x 30.3mm 80 x 75 x 40mm 80 x 97 x 62mm
Panel Cutout (WxH) 74.5 x 52.7mm 76.5 x 72mm 76.4 x 93mm
Depth behind 2mm panel (Note *3) 28.3mm 38mm 60mm
Weight (with paper) 102.5g 153g 164.5g 274g 285.5g
Interfaces RS-232C or TTL RS-232C, TTL or RS485 Parallel + RS232C RS-232C or TTL Parallel + RS232C
Data Buffer 10K bytes
Flow Control Software - XON/XOFF (Hardware flow control not supported)
Power 9VDC(+/-5%), 3.0A (std) 12-24VDC(+/-5%) 3.0A 9VDC(+/-5%), 3.0A (std) 12-24VDC(+/-5%) 3.0A
5VDC(+/-5%), 2.5A (option) 5VDC(+/-5%), 2.5A (option)
MCBF: head 50 km
MCBF: mechanism 37,000,000 lines
Operating temp. 0 to 45°C

Notes...

  1. Paper roll length is approximate, based upon readily available UK sourced coreless rolls.
  2. Paper roll length is approximate, based upon readily available UK sourced paper with 12.7mm core.
  3. Depth behind panel does not account for electrical connectors. Please order a printer for physical evaluation before committing to your final panel design.
