Woosim Porti SP Panel Printer Series
These are the smallest panel mounted printers available. The absolutely tiny Porti SP20 is only 53mm wide by 44mm high and less than 25mm deep. It weighs only 47g! This unbelievable device prints up to 24 characters per line on a 37mm wide direct thermal paper roll. It is absolutely perfect for small, portable instruments requiring a hard copy facility. The SP30 offers a longer paper roll capacity.

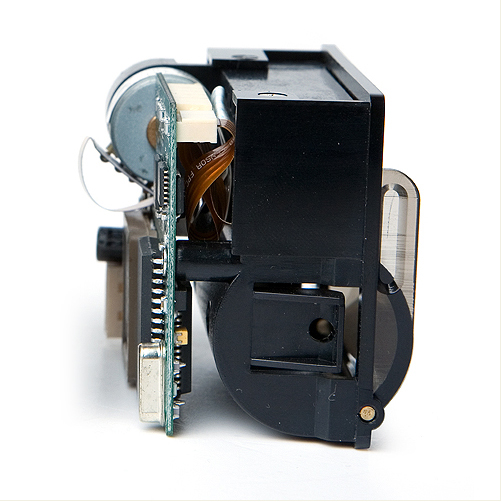

Porti SP20
Features & Benefits
- Ultra slimline - fits easily into compact equipment
- High speed (50mm/second) - for fast reporting
- High resolution (203 dpi: 8 dots/mm) - up to 24 characters per line
- Supports text and graphic printing - for charts or logos
- CLAMSHELL design - for easy, front access paper loading
- RS232C or TTL interface - compatible with most equipment
- 5V DC powered - for mobile, battery powered applications
- SP20 - 20mm diameter roll - slimline for the most compact equipment

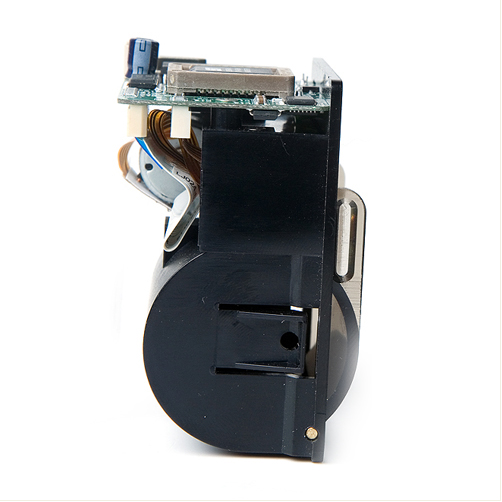

- SP30 - 30mm diameter roll - for more than twice the roll length
Porti SP Series Specifications
| SPECIFICATION | SP20 | SP30 |
| Printing System | Direct Thermal, Clamshell Easy load | |
|---|---|---|
| Case Colour(s) | Black or White | |
| Cutting System | Tear bar | |
| Media | Thermal paper roll | |
| Paper width | 37mm | |
| Roll Diameter | 20mm | 30mm |
| Roll Length | 5m (Note *1) | 11m (Note *1) |
| Characters per line | 24 | |
| Character size | 8x16, 9x24 dots | |
| Resolution | 203 dpi, 8 dots/mm | |
| Print width | 1 inch (24mm), 192 dots | |
| Printing speed | 50mm/second | |
| Dimensions (WxHxD) | 53 x 44.2 x 24.4mm | 53 x 62 x 33.8mm |
| Panel Cutout (WxH) | 51.4 x 42.6mm | 51 x 59mm |
| Depth behind 2mm panel Note *2 |
22.4mm | 31.8mm |
| Weight incl. paper roll |
47g | 51.5g |
| Interfaces | RS-232C or TTL | |
| Data Buffer | 10K bytes | |
| Flow Control | Software - XON/XOFF (Hardware flow control not supported) | |
| Barcodes supported | Code39, Code93, Code128, I2/5, UPC, EAN, KAN, JAN, CODABAR. 2D: PDF417 | |
| Power | 5VDC(+/-5%), 2.5A | |
| Standby Current | 60 mA | |
| MCBF: head | 50 km | |
| MCBF: mechanism | 37,000,000 lines | |
| Operating temperature | 0 to 45°C | |
Notes...
- Paper roll length is approximate, based upon readily available UK sourced coreless rolls.
- Depth behind panel does not account for electrical connectors for which allowance must be given. Please order a printer for physical evaluation before committing to your final panel design.
