Custom TG02H Kiosk Printer

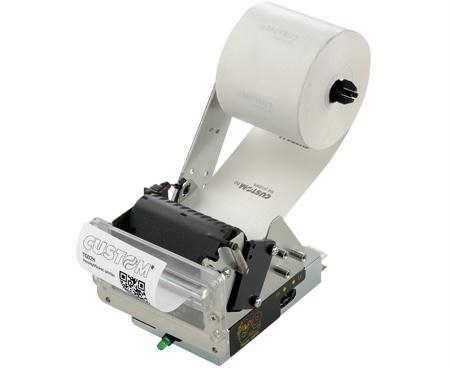

The TG02H is an extremely compact and versatile 57mm wide ticket printer, for easy installation and panel mounting. TG02H is available with black plastic bezel or mini transparent bezel with blue LED.
The Custom range of kiosk printers can be operated at an industry leading temperature range of -20 to +70°C. This makes them ideal for demanding industrial and field use in extreme environments.
TG02H
Features & Benefits
- 57mm Thermal Kiosk Printer
- 24, 32 & 42 characters per line - for most ticket formats
- Printing speed up to 80mm/second - for high speed issuing
- Illuminated bezel option - for intuitive user interaction
- Up to 90mm diameter roll capacity - to reduce maintenance
- Reliable paper tear off system - to minimise risk of jamming
- USB, RS-232/TTL Interface - compatible with most equipment
- Powered from 12 and 24V DC - accommodates wider range of power options
- -20 to +70°C operating range - for use in demanding environments
TG02H Specifications
| SPECIFICATION | TG02H |
| Printing System | Direct Thermal auto load |
|---|---|
| Bezel Colour(s) | Black or Transparent (with blue led illumination) |
| Cutting System | Integral Tear bar |
| Media | Thermal Rolls: Paper, Die cut continuous Label |
| Paper width | 57mm |
| Roll Diameter | 90mm |
| Roll Length | 100m (Note *1) |
| Paper thickness | 0.055 to 0.060mm |
| Characters per line | 24,32 & 42 |
| Resolution | 203 dpi, 8 dots/mm |
| Print width | 48mm, 384 dots |
| Printing speed | 80mm/sec |
| Dimensions (WxHxD) (Note *2) |
100 x 120 x 129mm 92 x 85.2 x 126.2 (with illuminated bezel) |
| Weight (without paper) | 330g 300g (with illuminated bezel) |
| Interfaces | Serial: USB, RS-232C & TTL |
| Sensors | Head temperature, paper presence, near paper end, anti-jamming |
| Power Requirement | 12 to 24VDC |
| Print head life | 50km |
| Operating temperature | -20~+70°C |
Utilities
- CuPowerTool - Windows software to enable layout creation (Windows 7 & above). Also managing/printing API for created layouts (Windows, Android, iOS & Linux).
- PrinterSet - Windows utility to update logos, edit characters, set operating parameters and update the printer firmware. It allows you to create a file including the different SW customizations and send them to the printer via the interface provided, for easy and fast setting.
- UpgCePrn - Windows Utility to update printer firmware
- CeLinuxUpg - Linux package to update printer firmware
- DriverManager - Windows utility to manage/remove Custom printer drivers
