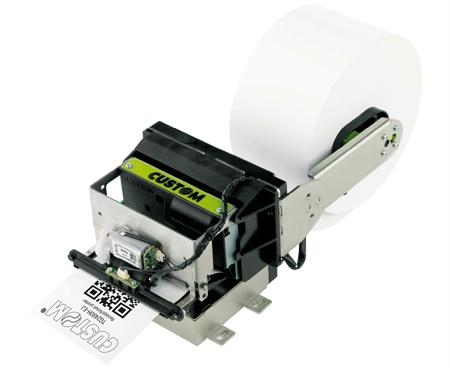

Custom TG2480H Kiosk Printer
Custom's TG2480H printer allows printing of tickets on 80 mm wide paper. It is metal framed to ensure excellent quality. The high printing speed (150mm/sec) and patented anti-jamming system are essential to guarantee successful ticket dispensing. The multi-position paper roll makes the printer extremely adaptable to any kind of kiosk
The Custom range of kiosk printers can be operated at an industry leading temperature range of -20 to +70°C. This makes them ideal for demanding industrial and field use in extreme environments.
TG2480H
Features & Benefits
- 80mm Thermal Kiosk Printer
- 35, 45 & 64 characters per line - for most ticket formats
- Printing speed up to 150mm/second - for very high speed ticket issuing
- Patented anti jamming system - for improved reliability
- Black bezel or motorised ejector options - for a choice of applications
- Up to 90mm diameter roll capacity - to reduce maintenance
- USB, RS-232 Interface - compatible with most equipment
- Powered from 24V DC - for higher printing speeds & better quality
- -20 to +70°C operating range - for use in demanding environments
TG2480H Specifications
| SPECIFICATION | TG2480H | TG2480HP |
| Printing System | Direct Thermal auto load | |
|---|---|---|
| Bezel Colour(s) | Transparent | Black (optional) |
| Cutting System | Autocutter | |
| Presenter | None | Motorised ejector |
| Media | Thermal Rolls: Paper, Die cut continuous Label | |
| Paper width | 52~80mm | |
| Roll Diameter | 90mm | |
| Roll Length | 100m (Note *1) | |
| Paper thickness | 0.055 to 0.080mm | |
| Characters per line | 35, 45 & 64 | |
| Resolution | 203 dpi, 8 dots/mm | |
| Print width | 48~76 (4mm steps) 384/608 dots | |
| Printing speed | 150mm/sec | |
| Dimensions (WxHxD) (Note *2) |
130.2 x 102 x 271.5mm | 130.2 x 102 x 260.2mm |
| Weight (without paper) | 1.13kg | 1.25kg |
| Interfaces | Serial: USB & RS-232C | |
| Sensors | input paper present, head temperature, paper jam | input/output paper present, head temperature, paper jam, paper low |
| Power Requirement | 24VDC | |
| Print head life | 50km | |
| Operating temperature | -20~+70°C | |
Utilities
- CuPowerTool - Windows software to enable layout creation (Windows 7 & above). Also managing/printing API for created layouts (Windows, Android, iOS & Linux).
- Ce Driver remove tool - allows removal of any printer drivers from Windows system
- CePrnStatusMonitor - Remote Status Monitor
- LogoMake - Windows utility to edit graphic logos & load them into flash memory
- FontMake - Windows utility to make or edit fonts & load them into flash memory
- UpgCePrn - Windows Utility to update printer firmware
- DriverManager - Windows utility to manage/remove Custom printer drivers
- CePrnSpy - Printer monitoring software
