Woosim WSP R240 Semi Rugged Thermal Printer

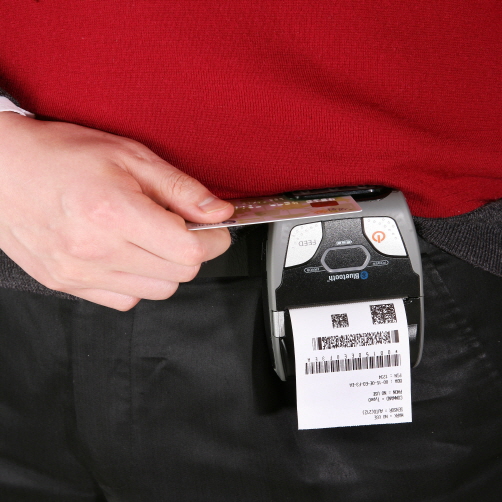

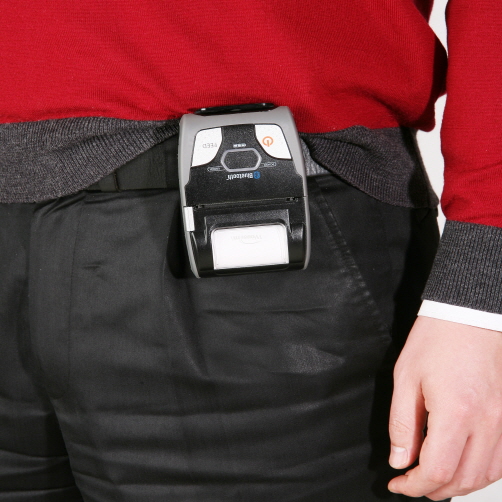

The WSP-R240 is the smallest of Woosim's family of rugged industrial printers. It is the lightest and most compact of the range making it ideal for carrying on the belt, hand held or in a pocket.

The standard sized 57/58mm wide thermal rolls are easily obtainable and very low cost. Its drop resistant casing has both RS-232C (or USB) and Bluetooth interfaces, making it ideal for mobile receipting, door to door selling (or collecting) and outdoor event POS. With high capacity Li-ion batteries as standard, this printer can be used for a prolonged period before recharging (which only takes 4 hours).

The WSP-R240 is certified by Apple Inc.; "Made for iPod", "Made for iPhone", and "Made for iPod" which means that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards (Note *1). It is also compatible with some mobile payment apps including PayPal Heretm.

WSP R240

WSP-R240 printer

Features & Benefits

  • 58mm semi-rugged thermal mobile printer
  • Durable Rugged Design - for tough working environments
  • Compact size & light-weight - easily carried
  • High Speed Thermal (80mm/sec) - ideal for on-demand receipt or ticket printing
  • RS232C, USB & Bluetooth or wireless LAN interface options - compatible with most terminals
  • Fast charging, clip-in, Li-ion battery - never be stuck with a flat battery
  • Easy paper loading by CLAMSHELL design - for fast, easy paper loading
  • Ideal for use with smartphones or PDA - drivers and SDK's available
  • Compatible with mobile payment apps.
  • Rechargeable battery, charger and data cable included - ready to use

WSP-R240 Specifications

Printing System Direct Thermal, Clamshell Easy load
Case Colour(s) Black & Grey
Cutting System Tear bar
Media Thermal paper roll, Thermal label roll
Paper width 57/58mm
Roll Diameter 40mm
Roll Length 17m (Note *2)
Characters per line 42
Character size 9x24, 12x24, 16x24, 24x24 dots
Resolution 203 dpi, 8 dots/mm
Print width 2 inch (48mm)
384 dots
Printing speed 80mm/second
Magnetic Stripe Reader Tracks 1, 2 & 3
Smart Card Reader n/a
Dimensions (WxDxH) 79.5 x 114.3 x 43.5mm
(MSR) 79.5 x 118.2 x 43.5mm
Weight (incl paper) 217g
Interfaces RS-232C & Bluetooth, USB (option)
Data Buffer 1M bytes
Flow Control Software - XON/XOFF (Hardware flow control not supported)
Barcodes supported 1D: Code128, Code39, I2/5, Code93 UPC, EAN, KAN, JAN, CODABAR
2D: PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417
Sensors Head open, Paper out, Black mark
Battery 7.4V DC Li-ion 1.1A h
Full Recharge 4 hours, provides 1 hour continuous printing @ 25% duty cycle
Charger Input: 100~240V AC 50~60Hz, Output:8.4V DC
MCBF: head 50 km
MCBF: mechanism 37,000,000 lines
Operating temp. -10 to 50°C
Humidity 30 to 80%


  1. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  2. Paper roll length is approximate, based upon readily available UK sourced paper with 12.7mm core.
