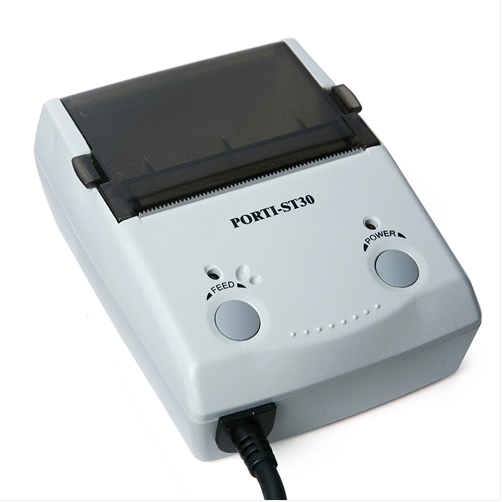

Woosim Porti ST30, KT40 & PC40 Vehicle Printers
The ST30, KT40 and PC40 are free standing, compact, easy load thermal printers. They have a fixed, single cable connection to carry both data and power the unit.
The small size and simplicity of the single cable connection make this printer popular for in-vehicle uses such Taxi Receipting, Radio Messaging and Delivery Logistics.

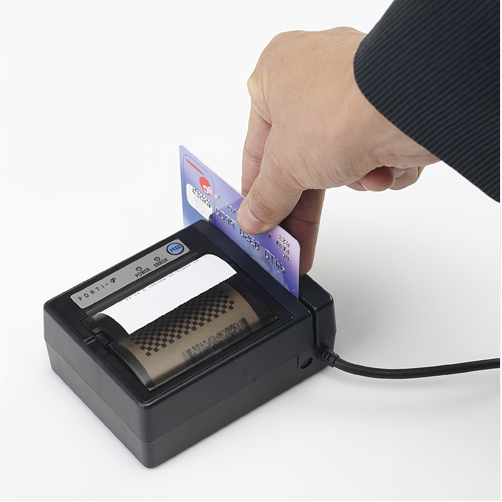

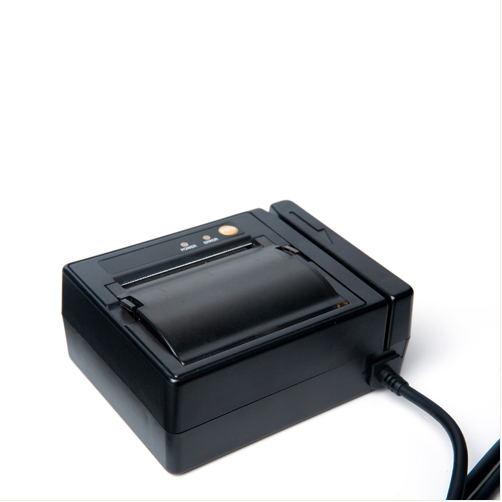

The PC40 incorporates a two track magnetic card swipe reader.
Porti KT40
Features & Benefits
- 58mm vehicle powered thermal receipt printer
- 42 characters per line - ideal for taxi printer receipts
- e-marked - certified for taxi printer applications
- RS-232 and RS-485 serial interface options - compatible with most taxi meters
- CLAMSHELL design - for fast, easy paper loading
- Choice of 30 or 40mm diameter roll capacities
- Powered from 12V DC - can be powered direct from the vehicle
- Available in black or white housing - to suit other installed devices
- Fixed, combined power/data cable - for added reliability and easy maintenance
- 2 track MCR - used by many taxi firms to identify the driver
Applications
Although ideal as a taxi receipt printer, this range can obviously also be used in many other automotive applications such as van sales or automotive test equipment. They are equally at home in many other situation were a printed output is required from 12V DC powered equipment.
- Taxi Meter Receipt Printing
- Van sales
- Automotive Test Equipment
- Kitchen printer
- Electronic scales
- Measuring equipment
- Motorsport timing
- Law enforcement
Porti ST30/KT40/PC40 Specifications
| SPECIFICATION | ST30 | KT40 | PC40 |
| Printing System | Direct Thermal, Clamshell Easy load | ||
|---|---|---|---|
| Case Colour(s) | Black or White | Black | |
| Cutting System | Tear bar | ||
| Media | Thermal paper roll, Thermal label roll | ||
| Paper width | 57/58mm | ||
| Roll Diameter | 30mm | 40mm | |
| Roll Length | 11m (Note *1) | 17m (Note *2) | |
| Characters per line | 42 | ||
| Character size | 9x24, 12x24 dots | ||
| Resolution | 203 dpi, 8 dots/mm | ||
| Print width | 2 inch (48mm), 384 dots | ||
| Printing speed | 50mm/second | ||
| Magnetic Stripe Reader | n/a | JIS-ISO-I/II or JIS-ISO-II/III | |
| Smart Card Reader | n/a | ||
| Dimensions (WxDxH) | 75 x 95 x 35mm | 75 x 103 x 45mm | 80 x 105 x 46mm |
| Weight (incl paper) | 169g | 237g | 241g |
| Interfaces | RS-232C or RS485 | ||
| Data Buffer | 10K bytes | ||
| Flow Control | Software - XON/XOFF (Hardware flow control not supported) | ||
| Barcodes supported | 1D: Code128, Code39, I2/5, Code93 UPC, EAN, KAN, JAN, CODABAR | ||
| 2D: PDF417, QR Code, DATA Matrix | |||
| Sensors | Head open, Paper out | ||
| Power | 12~24V DC, Standby 60mA, Max 3A | ||
| MCBF: head | 50 km | ||
| MCBF: mechanism | 37,000,000 lines | ||
| Operating temp. | -10 to 50°C | ||
| Humidity | 30 to 80% | ||
Notes...
- Paper roll length is approximate, based upon readily available UK sourced coreless rolls.
- Paper roll length is approximate, based upon readily available UK sourced paper with 12.7mm core.
