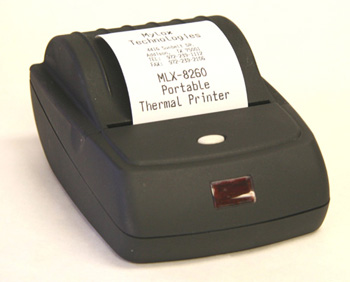

Mylox MLX8260 Portable Printer
The MLX-8260 from Mylox Technologies incorporates the reliable Fujitsu FTP628 easy load thermal printer mechanism and a highly customisable interface board. Internal, high capacity, Li-ion rechargeable batteries are accessible for user maintenance via a hatch on the underside. The printer can be operated direct from a 12V DC source such as a vehicle or from the universal AC adapter (included) with or without the batteries fitted. The clamshell easy load design means that paper can be replacesd in seconds. The simple and effective LED illuminated push button functions as a status indicator, paper advance and self test feature (customisable).
The standard interface is RS-232C serial but USB and Bluetooth versions can be ordered. This printer is highly adaptable and customised firmware, fontsets and functionality can be specified. Impact dot matrix and 80mm thermal versions are also available.
MLX8260
Features & Benefits
- 58mm portable thermal printer
- High Print Speed (60mm/sec @ 7.5V) - for receipting or ticketing applications
- Up to 50mm diameter paper - reduces down time for paper changes
- RS232 serial, USB, & Bluetooth options - compatible with most systems
- Internal (removeable) 2000mA Li-ion rechargeable battery - can be used with existing system power
- Direct 12V DC charger for uninterupted operation - can be used with or without battery pack
- Easy paper loading by CLAMSHELL design - for fast, easy paper loading
- Alternative emulation modes and font editor compatible with legacy equipment
- Compatible with linerless label roll - for rapid order picking, samples, or product labelling
- Full Windows driver support - compatible with most operating systems
MLX8260 Printer Specifications
| SPECIFICATION | MLX8260 | MLX8260-USB | MLX8260-BT | MLX8260-12V | MLX8260-DC |
| Printing System | Direct Thermal, Clamshell Easy load | ||||
|---|---|---|---|---|---|
| Case Colour(s) | Charcoal Grey | ||||
| Cutting System | Tear bar | ||||
| Media | Thermal paper roll, Thermal label roll | ||||
| Paper width | 57/58mm | ||||
| Roll Diameter | 50mm | ||||
| Roll Length | 24m (Note *1) | ||||
| Characters per line | 24, 32 & 42 | ||||
| Resolution | 203 dpi, 8 dots/mm | ||||
| Print width | 2 inch (48mm), 384 dots | ||||
| Printing speed | 60mm/second (max) | ||||
| Dimensions (WxDxH) | 104 x149 x 69mm | ||||
| Weight (incl. paper) | 385g | 290g | |||
| Interfaces | RS-232C | USB | Bluetooth | RS-232C | |
| Flow Control | Hardware or Software (XON/XOFF) | ||||
| Sensors | Head open, Paper out | ||||
| Power | 2000mA h Li-ion battery supplied with AC charger |
12V DC, 3.3A | 5 to 8.5V DC | ||
| MCBF: head | 50 km | ||||
| Operating temp. | 0 to 45°C | ||||
| Humidity | 10 to 80% | ||||
Notes...
- Paper roll length is approximate, based upon readily available UK sourced paper with 12.7mm core.
