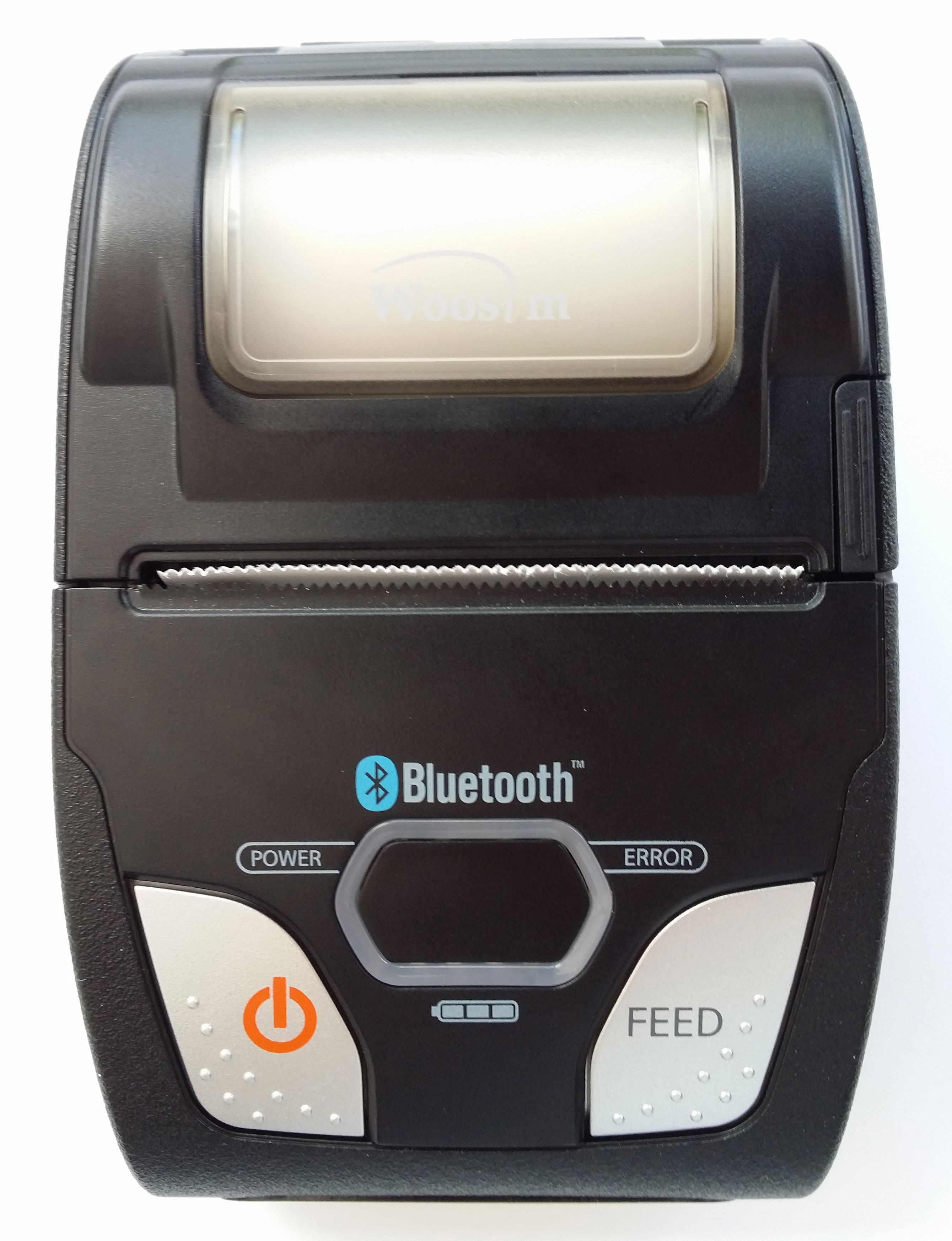

Woosim WSP-R231 & WSP-R241 Pocket Printers
The replacement for the immensly popular Porti S40 from Woosim draws on the aesthetics of their popular semi-rugged WSP-R240 device. The WSP-R2x1 are single skin versions of the WSP-R240 casing making it even lighter and its compact dimensions make it ideal for carrying on the belt, hand held or in a pocket.
The standard sized 57/58mm wide thermal rolls are very low cost and easily obtainable. The printer has a simple push button to open the cover and the easyload system means the new roll is simply dropped into place, the lid closed and its ready to print!
The printers have been launched with a USB and Bluetooth dual interface. Alternative interface versions will be announced later. In common with Woosim's range of other mobile printers, they come complete with high capacity Li-ion batteries as standard. This means they can be used for prolonged periods before recharging (which only takes 4 hours).
WSP R241
Features & Benefits
- 58mm thermal mobile pocket printer
- Replacement for Porti S40 - entry level printer
- Very low cost - ideal for budget applications
- Compact size & light-weight - easily carried
- High Speed Thermal (100mm/sec) - ideal for on-demand receipt or ticket printing
- USB & Bluetooth - compatible with modern devices
- Fast charging, clip-in, Li-ion battery - never be stuck with a flat battery
- Easy paper loading by CLAMSHELL design - for fast, easy paper loading
- Ideal for use with smartphones or PDA - drivers and SDK's available
- Rechargeable battery, charger and data cable included - ready to use
WSP-R241 Specifications
| SPECIFICATION | WSP-R231 | WSP-R241 |
| Printing System | Direct Thermal, Clamshell Easy load | |
|---|---|---|
| Case Colour(s) | Black | |
| Cutting System | Tear bar | |
| Media | Thermal paper roll | Thermal paper/label roll |
| Paper width | 57/58mm | |
| Roll Diameter | 30mm | 40mm |
| Roll Length | 8m (Note *1) | 17m (Note *1) |
| Characters per line | 42 | |
| Character size | 9x24, 12x24, 16x24, 24x24 dots | |
| Resolution | 203 dpi, 8 dots/mm | |
| Print width | 2 inch (48mm) 384 dots |
|
| Printing speed | 100mm/second | |
| Magnetic Stripe Reader | [Option] Tracks 1, 2 & 3 | |
| Smart Card Reader | n/a | |
| Dimensions (WxDxH) | 79.5 x 104.4 x 37.6mm MSR: 79.5 x 108.4 x 37.6mm |
79.5 x 114.3 x 43.5mm MSR: 79.5 x 118.2 x 43.5mm |
| Weight (g) | 193.5 / MSR: 197.5 | 197.2 / MSR: 202.1 |
| Interfaces | USB & Bluetooth | |
| Data Buffer | 1M bytes | |
| Flow Control | Software - XON/XOFF (Hardware flow control not supported) | |
| Barcodes supported | 1D: Code128, Code39, I2/5, Code93 UPC, EAN, KAN, JAN, CODABAR | |
| 2D: PDF417, QR Code, DATA Matrix, Micro PDF417, Truncated PDF417 | ||
| Sensors | Head open, Paper out | Head open, Paper out, Black mark |
| Battery | 7.4V DC Li-ion 1.13A h | |
| Full Recharge | 4 hours, provides 1 hour continuous printing @ 25% duty cycle | |
| Charger | Input: 100~240V AC 50~60Hz, Output:8.4V DC | |
| MCBF: head | 50 km | |
| MCBF: mechanism | 37,000,000 lines | |
| Operating temp. | -10 to 50°C | |
| Humidity | 30 to 80% | |
