Woosim WSP-SM and WSP-SC Mobile Printer Series
The Woosim 1 inch mobile printers are pocket sized and ultra light-weight making them ideal for truly mobile applications. They are based on a very fast (80mm/sec) direct thermal mechanism printing on 37mm wide paper rolls.
Both models include a magnetic stripe reader and the SM-125 also has an integrated ISO 7816 Compliant (EMV level 1 Certified) smart card reader. This version incorporates a SAM (Security Application Module) card slot for secure, fiscal applications. The printers have an RS232 interface and a data cable is supplied but they also have a Bluetooth interface as standard. The wireless capability makes the range ideal for mobile receipting, door to door selling (or collecting) and outdoor event POS.
With high capacity Li-Ion batteries as standard, the printer can be used for a prolonged period before recharging (which only takes 4 hours).

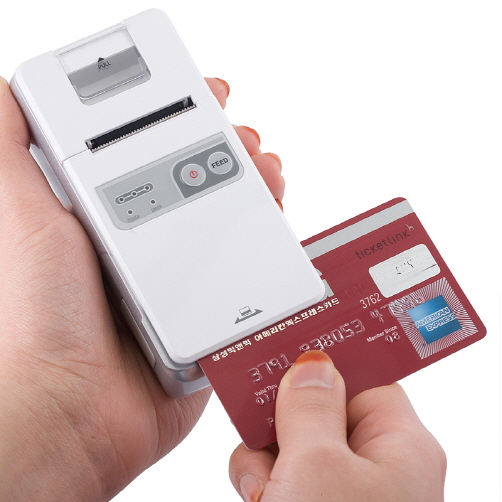

WSP-SM125
Features & Benefits
- 37mm handheld thermal mobile printer
- Lightweight and compact - easily carried, in a pocket or clipped to a belt
- Fast charging, clip-in, Li-ion battery - never be stuck with a flat battery
- RS232 & Bluetooth dual interface - compatible with most terminals
- Easy paper loading by CLAMSHELL design - for fast, easy paper loading
- MSR (magnetic Stripe Reader) & SCR (Smart Card Reader) options - for fiscal transactions
- Ideal for use with smartphones or PDA - drivers available
- Rechargeable battery, charger and data cable included - ready to use
WSP-SM / WSP-SC Printers Specifications
| SPECIFICATION | WSP-SM125 | WSP-SC130 |
| Printing System | Direct Thermal, Clamshell Easy load | |
|---|---|---|
| Case Colour(s) | White | |
| Cutting System | Tear bar | |
| Media | Thermal paper roll, Thermal label roll | |
| Paper width | 37mm | |
| Roll Diameter | 25mm | 30mm |
| Roll Length | 8m (Note *1) | 11m (Note *1) |
| Characters per line | 24 (max) | |
| Character size | 8x16, 9x16 dots | |
| Resolution | 203 dpi, 8 dots/mm | |
| Print width | 1 inch (24mm), 192 dots | |
| Printing speed | 80mm/second | |
| Magnetic Stripe Reader | ISO 7810 / 7811 / 7812 1&2 or 2&3 Track Reading | |
| Smart Card Reader | ISO 7816 Compliant (EMV level 1 Certified) 1 SAM (Security Application Module) |
n/a |
| Dimensions (WxDxH) | 58 x 119 x 36.6mm | 58 x 106 x 38.1mm |
| Weight (incl paper) | 196g | 178.5g |
| Interfaces | RS-232C & Bluetooth | |
| Data Buffer | 1M bytes | |
| Flow Control | Software - XON/XOFF (Hardware flow control not supported) | |
| Barcodes supported | 1D: Code128, Code39, I2/5, Code93 UPC, EAN, KAN, JAN, CODABAR | |
| 2D: PDF417, QR Code, DATA Matrix | ||
| Sensors | Head open, Paper out, Black mark | |
| Battery | 7.4V DC Li-ion 920mA h | |
| Full Recharge | 4 hours, provides 1 hour continuous printing @ 25% duty cycle | |
| Charger | Input: 100~240V AC 50~60Hz, Output:8.4V DC | |
| MCBF: head | 50 km | |
| MCBF: mechanism | 37,000,000 lines | |
| Operating temp. | -10 to 50°C | |
| Humidity | 30 to 80% | |
